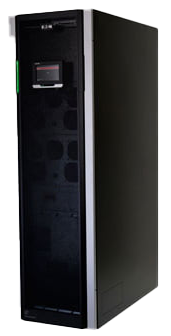

eaton 93pm lithium-ion

Combines unprecedented efficiency, reliability, and vertical or horizontal scalability with eye-catching design.

eaton 93pm lithium-ion

The UPS for Nearly Any Need and Any Space.

The Eaton 93PM has been coined the perfect three-phase power supply solution for good reason. Combining efficiency, reliability, and flexibility – there’s no UPS more capable of providing a low maintenance, long-lived solution.

Whether for a large data center, medical facility, educational institution, or other application, the efficiency and scalability of the 93PM makes it the obvious white or grey space choice for many. Available in 50kVA-200kVA. Ask about Lithium-Ion battery applications for the Eaton 93PM UPS System.

EATON Features

Features and Benefits
- Reduces power and cooling OPEX through industry-leading energy efficiency.
- Conserves valuable data center floor space with its compact footprint and internal redundancy design.
- Reduces cost and unexpected future growth risks with its vertical scalability, enabling you to scale as you grow.
- Maximizes deployment flexibility by providing innovative thermal management options, flexible configurability and full-service access from the front.
- Simplifies installation by fitting perfectly in line or alongside any standard-depth rack
- Provides easier access to detailed status information through its large, user-friendly LCD touchscreen interface
- Optimizes server virtualization solutions through its full suite of power management and connectivity software.
- Increases uptime through its 24×7 remote monitoring and reporting capabilities.
- Available in Lithium-Ion Option

Features and benefits

Runtime Solutions

In the event of an outage, two options exist to continue providing power to the UPS load: lithium-ion batteries and a flywheel system. While more expensive than lithium-ion batteries, flywheel systems offer many benefits, including:

limited required maintenance
20-year design life
the ability to operate in high temperature environments
and 90% reduced carbon footprint when compared to batteries

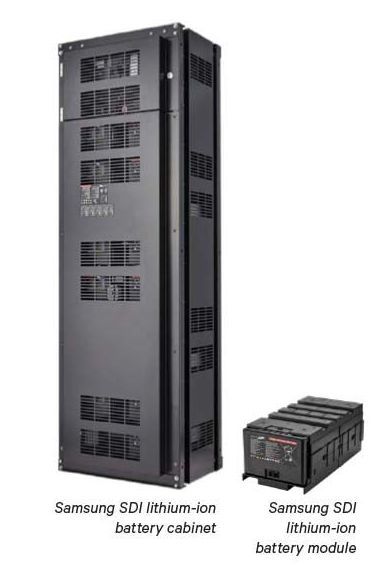

Lithium-Ion Battery for EATON 93M UPS

Lithium Ion battery packages available in select sizes
Lithium Ion battery system for Eaton UPS Systems provides low maintenance, long life battery system of the future.
Minimal maintenance, highly reliable, smaller footprint, long life, slightly higher up front cost

Quick Stats

99% Efficiency
Seismic and OSHPD certified
TAA Compliant

Power Rating: 50, 50+1, 100, 100+1, 150, 150+1, 200 kVA

Voltage: 480V (208 with IAC-D)

Frequency: 50/60Hz

Efficiency: Up to 97% in double conversion

99% in Energy Saver System

Scalability: Internal up to 4, External up to 8

Configuration: Tower

Batteries: Internal batteries up to 50 kW; external batteries up to 200 kW

Power Modules:

Power Offering (kW): 50, 50+1, 100, 100+1, 150, 150+1, 200**

(Derates available in 10 kW increments)

General Characteristics:

Efficiency in Energy Saver Systems (ESS): 99%

Efficiency in Double-Conversion Mode: Up to 97%

Parallel Capability: 8 distributed

Input Characteristics:

Voltage: 480V (208V with IAC-D)

Voltage Range: +10% / -15%

Frequency Range: 50/60 Hz

Power Factor: >.99

Input Current Distortion: <3% @ 100% load capacity

Output:

Voltage: 480V (208V with IAC-D)

Regulation: ±1% steady state

Voltage THD: <1% (100% linear load); <5% (non-linear load)

Load Power Factor Range:.8 leading to .8 lagging without de-rating

Battery:

Battery Voltage: 432V

Charging Method: ABM® or float technology

Certification:

Safety: UL1778, cUL

EMC: FCC Part 15 subpart B class A

Surge: IEC 61000-4-5

Optional Accessories:

External slim maintenance bypass

Integrated distribution cabinet (with input and output transformer options)

Integrated parallel tie cabinets

Integrated battery cabinet (small and large)

Due to continuous product improvements, program specifications are subject to change without notice.

Download our brochures and technical specs sheet to learn more.

Brochure

DOWNLOAD PDF → DOWNLOAD PDF →

Specs

DOWNLOAD PDF →

single source ups provider

Expert assistance from Technical Consultants assist in the selection process of your next UPS System.
Our team is available for Technical Review of specifications, Sizing assistance, Voltage selection, and Runtime Calculations.
